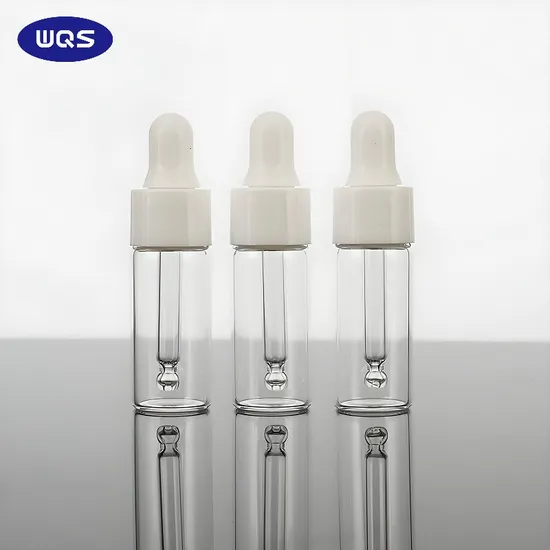

Borosilicate 5.0 Clear/Amber Tubular Glass Bottle Vials for Pharmaceutical or Cosmetic Injection

Basic Info.

Model NO.	USP Type I
Closure Type	Flip Cap, Flip Cap
Color	Clear/Amber, Clear&Amber
Material	Glass, Neutral Borosilicate
Shape	Round, Round
Usage	Essential Oils, Herbal Supplements, Pharmaceuticals, Laboratory/Cosmetics/Oral Liquid, Biotechnology, Diagnostic Testing, Laboratory, Pharmaceuticals, Sample Storage
Type	Crimp Top Vial
Graduation	Customized
Volume	1-100ml
Customized	Accept
Sample	Free
Application	Medical
Logo Printing	with Logo Printing
Recycled	Unrecycled
Flexibility	Hard
Technics	Bottle Blowing
Transport Package	Cellular Tray Packaging & Shrink-Wrapped
Specification	1-100ML
Trademark	WQS
Origin	China
HS Code	7010909000
Production Capacity	30000000000 PCS/Year

Product Description

Products Introduction
The vials series include tubular injectable, screw neck, blow back of both clear and amber color. Specification ranges from 1ml to 50ml, can meet the ISO standard or customize.
The quality comply with USP and EP.

Specifications and dimensions

Entering US
Transport Package



Why Choose US?I. ExperienceCHANGZHOU WQS PHARMACEUTICAL PACKAGING CO., LTD has been deeply engaged in the tubular glass bottle industry for over 20 years. We have established long-term and stable cooperative relationships with over 100 glass bottle end-users worldwide, who are widely spread across various fields such as medicine, laboratories, cosmetics, and more. Our corporate purpose has always been to provide the most cost-effective high-quality products and professional after-sales service.
II. TechnicalityWe understand the importance of meeting customer requirements with high-quality solutions. We can provide types of glass vials which meet the requirements of ISO12775-1992,UPS/PH,EP/PH,JP/PH standards.III. Competitive Price On the premise of ensuring high-quality products, we will cooperate with you at extremely competitive prices.
IV. ServiceWe will provide professional after-sales service.

ISO Standard A and C Injection Bottle Specifications and Dimensions (mm)
Size	Capacity	a	d1	d2	d3	d4	h1	h2	h3	r1	r2	s1	s2	t
2R	4ml	1	16	13	10.5	7	35	22	8	2.5	1.5	1	0.6	0.7
4R	6ml						45	32
6R	10ml	1.2	22	20	16.5	12.6	40	26	8.5	3.5	2	1	0.7	0.7
8R	11.5ml						45	31
10R	13.5ml		24				45	30	9	4
15R	19ml						60	45
20R	26ml	1.5	30	20	17.5	12.6	55	35	10	5.5	1.2	1.2	0.7	1
25R	32.5ml						65	45
30R	37.5ml						75	55
